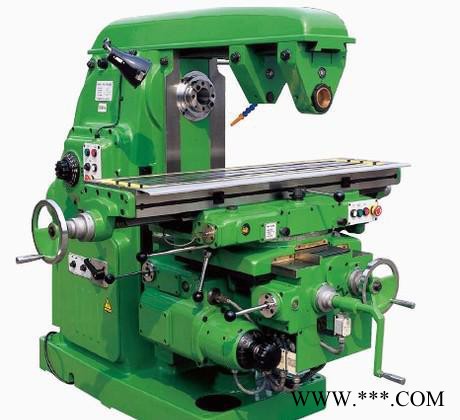

深圳升降台铣床 X6132卧式铣床

2021-08-19 21:108800已售
价格:70000.00/台
类型:升降台铣床
重量:2850(kg)
起订:1台
供应:100台
类型 升降台铣床
重量 2850(kg)
主电机功率 7.5(kw)
主轴转速范围 30-1500(rpm)
工作台尺寸 320×1325(mm)
主轴锥孔锥度 NO.50(7:24)
T型槽数目 3
控制形式 程序控制
布局形式 卧式
作用对象 五金
作用对象材质 金属
适用范围 通用
适用行业 通用
产品类型 全新
是否库存
售后服务 保修一年
品牌 钜凌
型号 X6132

钜凌6132万能升降铣床

钜凌6132万能升降铣床

x6132a



项目名称
 Working table

 单位
 Unit

 参数
 Spectification

工作台
 working Table

 工作面积(宽×长)
 working surface(W×L)

 mm

320×1325

 **大承载重量
 Bearing

 kg

 500

 T型槽数目
 No.of T-slots of table



 3

 T型槽宽度
 Width of T-slots of table

 mm

 18

 T型槽间距
 Distance between T-slots

 mm

 70

 行程
 Travels

 X向(工作台纵向)手动/机动
 Longitudinal(manual/auto)

 mm

 700/680

 Y向(滑座横向)手动/机动
 Cross (manual/auto)

 mm

 245/230

 Z向(升降台垂向)手动/机动
 Vertical(manual/auto)

 mm

 320/300

 主轴
 Spindle

 锥孔(Taper)



 IOS NO.50(7:24)

 转速范围

 r/min

 30-1500

 转速级数
 No.of spindle speeds

 级
 Step

 18

 轴向移动距离
 Axial mootion

 mm

 85

 **大回转角度
 Max.swivel angle

 dep

 ±45

 垂直导轨面至工作台中心线轴距离
 **小/**大
 Distance from spindle nose
 to table surface min./mix.

 mm

 215/470

 主轴中心线至床身垂直导轨面距离
 Distance from centre line of
 spindle tovertical guideway
 surface of column

 mm

 30/350

 进给
 Feedrates

 切削进给速度
 cutting feed rate

 mm/min

 X:23.5~1180
 Y:15~786
 Z :8~394

 快速移动速度
 Rapid feed rate

 mm/min

 X,Y:2300
 z:770

 进给级数
 No.of feeds

 级
 Step

 18

 电动机
 Motor

 主轴电机功率
 Power of spindle motor

 kw

 7.5

 进给电机功率
 powerof feed motor

 kw

 2.2

 其他
 Others

 机床外形尺寸(长×宽×高)
 Overall dimensions(L×W×H)

 mm

 2294×1170×1665

 机床重量
 Weight of the machine

 kg

 2850
