产品类型：全新
工作台尺寸：3000*1500
控制形式：数控
起订：5台
发货：10天内
| 产品类型 | 全新 |
|---|---|
| 工作台尺寸 | 3000*1500 |
| 控制形式 | 数控 |
| 类型 | 龙门铣床 |
| 适用范围 | 通用 |
| 重量 | 27000 |
| 主电机功率 | 18.5 |
| 主轴转速范围 | 6000 |
| 是否库存 | 否 |
| 作用对象 | 通用 |
| 适用行业 | 通用 |
| 布局形式 | 立式 |
| 作用对象材质 | 通用 |
| 品牌 | 河北大恒 |
| 型号 | DHXK3019 |
| 主轴锥孔锥度 | ISO7：24NO50 |
| T型槽数目 | 5.0 |
1．产品简介：

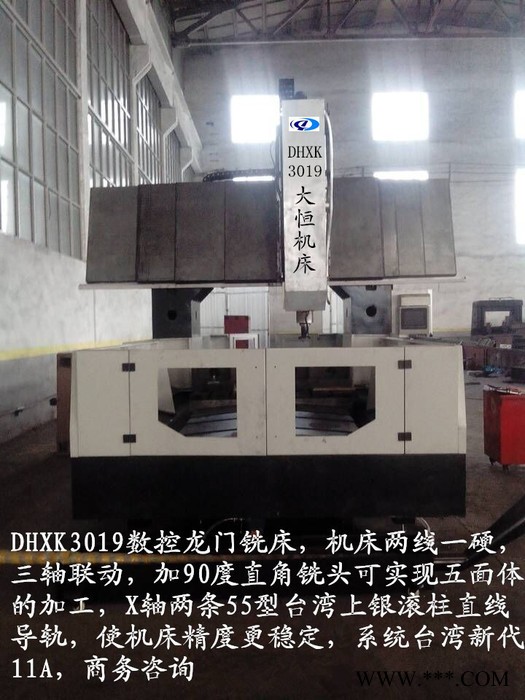

机床的结构特点：固定式床身、工作台移动；主轴箱随溜板上下移动；亦可沿横梁左右移动实现三轴联动；配置22kW主镗铣头。机床具有铣削、镗削、钻削、锪孔等功能，适用于机械、钢铁、能源、汽车、航空航天、兵器、船舶等行业的大、中型零件的加工。配备附件铣头后可实现工件的一次装夹，安装直角铣头可五面加工，一机多用，提高了工件的加工质量和生产效率。该机床台湾新代系统CNC数控控制。
为保证机床性能与可靠性， 我公司在该机床上大量采用高品质的配套件：
轴承采用NSK精密高品质轴承
电机采用华大电机
丝杆采用台湾上银滚珠研磨丝杠
导轨采用台湾上银滚珠直线导轨。
一、 机床主要技术参数：
1．机床主参数：
工作台尺寸（宽×长）······································ 3000mm′1600 mm
上下行程······························································ 1000mm
T型槽宽······························································· 7*22mm
T型槽间距··························································· 200mm
2．加工范围参数：
工作台行程·························································· 3000mm
两立柱间距·························································· 1900mm
主轴箱上下进给·················································· 800mm
加工最大高度······················································ 1000mm
3．主铣头参数：
主轴电机功率（S1/S6-60%）···························· 18.5kW
主轴转速范围······················································ 4500r/min
主轴输出转矩（S1/S6-60%）···························· 300 Nm
主轴锥孔······························································ ISONo.50 （BT50)
4．整机参数：
机床电气总容量·················································· 60KVA
机床重量······························································ 约28000 Kg
机床外形尺寸（长×宽×高）·························· 约8000mm×3800mm×3500mm
