车床

2021-08-19 23:1612170询价
价格:电议
品牌:沂机制造
外形尺寸:(2840-12100)x1257x1347(mm)
加工精度:精密
起订:1套
供应:200套
发货:10天内
外形尺寸 (2840-12100)x1257x1347(mm)
加工精度 精密
适用行业 通用
是否库存
产品类型 全新
安装形式 落地式
布局形式 卧式
主电机功率 11kw
最大回转直径 650-1000mm
最大加工长度 750-10000mm
最大加工直径 350-750mm
主轴通孔直径 70mm
动力类型 机械传动
适用范围 通用型
类型 普通车床
控制形式 人工
主轴转速级数 18

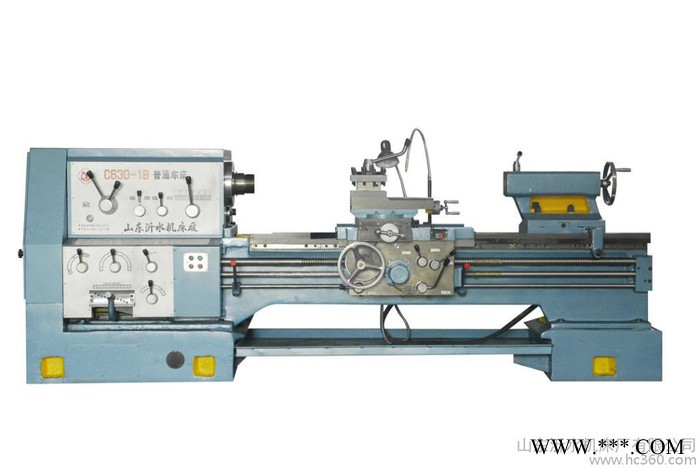

普通车床Common lathe


C630-1B、C630-1BG、CW6163B、CW6180B、CW61100B普通车床能够承担各种车削工作。如车削内外圆柱面、圆锥面及其他回转面和端面等,车削各种常用螺纹:公制螺纹、英制螺纹、模数螺纹和径节螺纹等。在本机床上加工的零件轴类尺寸精度能达到IT6。

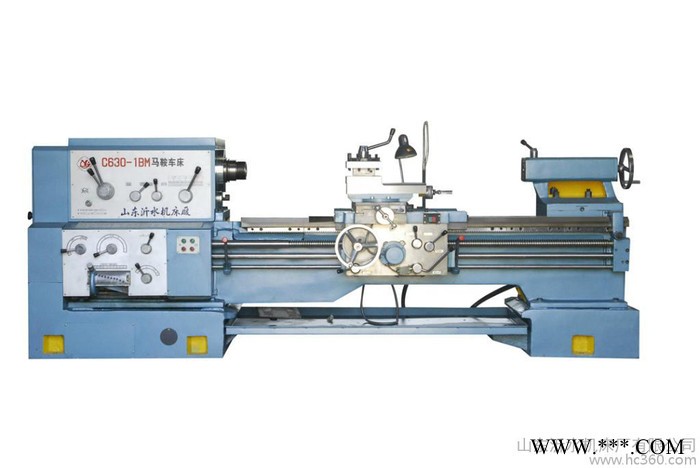

C630-1BM,C630-1BMG、CW6263B、CW6280B型马鞍车床,加大了主轴回转直径特别适于加工较大的盘类和畸形零件。

Common lathes of C630-1B、C630-1BG、CW6163B、CW6180B、CW61100B can undertake various turning works such as turning inner and outer cylindrical surface, conical surface and other   revolution and end surface etc., and tuning all kinds of common threads: metric thread, inch thread, modulus thread, and diameter pitch thread etc. The dimensional accuracy of parts and axles processed by the machine tools can reach IT6.

The gap-bed lathes including C630-1BM, C630-1BMG, CW6263B and CW6280B increase the swing diameter of spindle and are suitable for machining discoid and non-circular parts with bigger diameters.
