品牌：金岭 JINGLING
产品类型：全新
动力类型：机械传动
加工精度：高精度
起订：1台
供应：5000台
发货：3天内
| 产品类型 | 全新 |
|---|---|
| 动力类型 | 机械传动 |
| 加工精度 | 高精度 |
| 控制形式 | 数控 |
| 类型 | 普通车床 |
| 适用范围 | 专用型 |
| 安装形式 | 落地式 |
| 是否库存 | 是 |
| 适用行业 | 通用 |
| 布局形式 | 立式 |
| 品牌 | 金岭 |

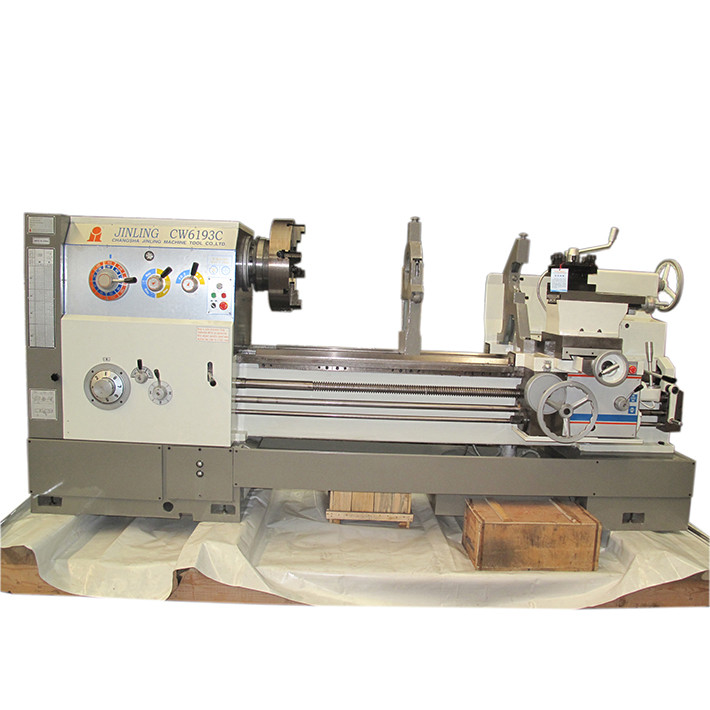

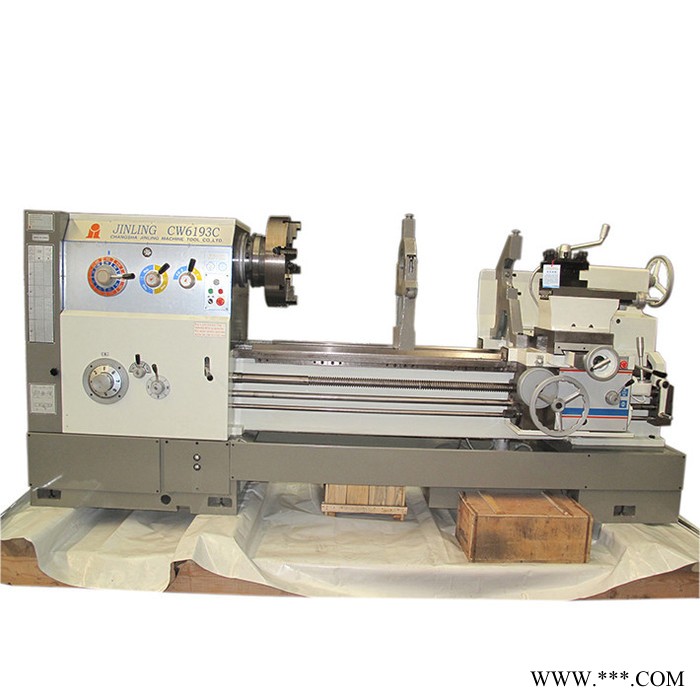

PRODUCT FEATURES:

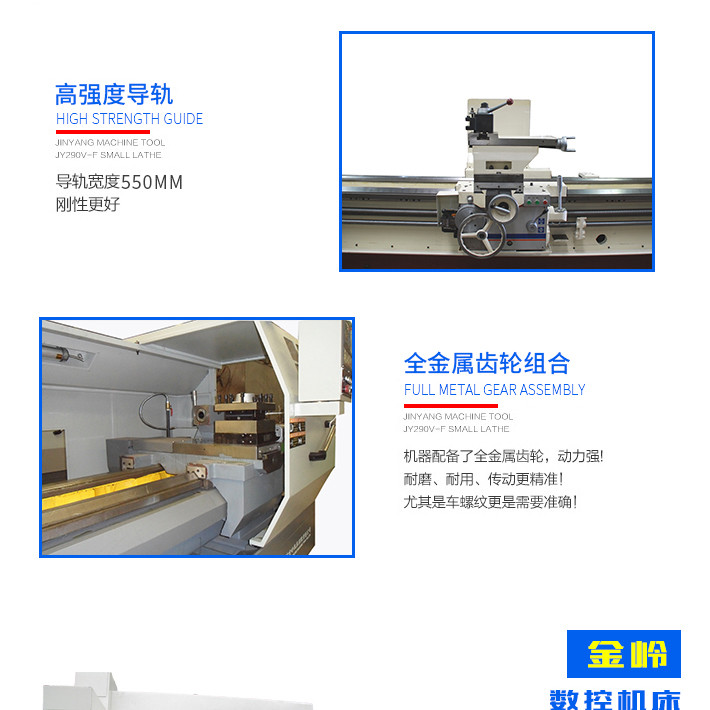

1.Precision ground and hardened bed ways
2. The spindle is supported with precision roller bearings

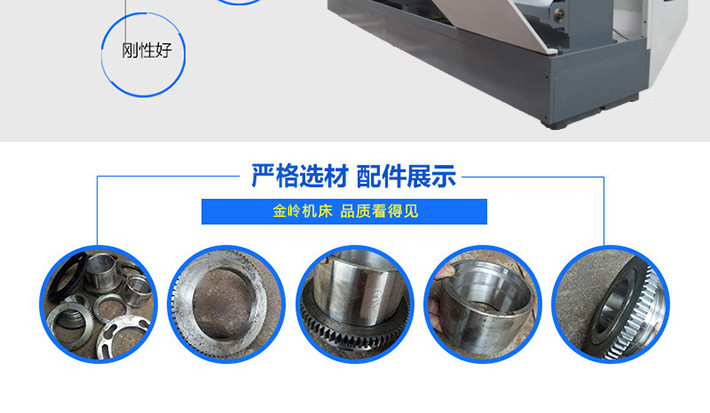

3. Head stock gears are made of high quality steel, ground and hardened
4. Easy operating speed change levers
5. Easy operating gear box has various feeds and thread cutting function
6. Rapid feed structure is available on Apron.

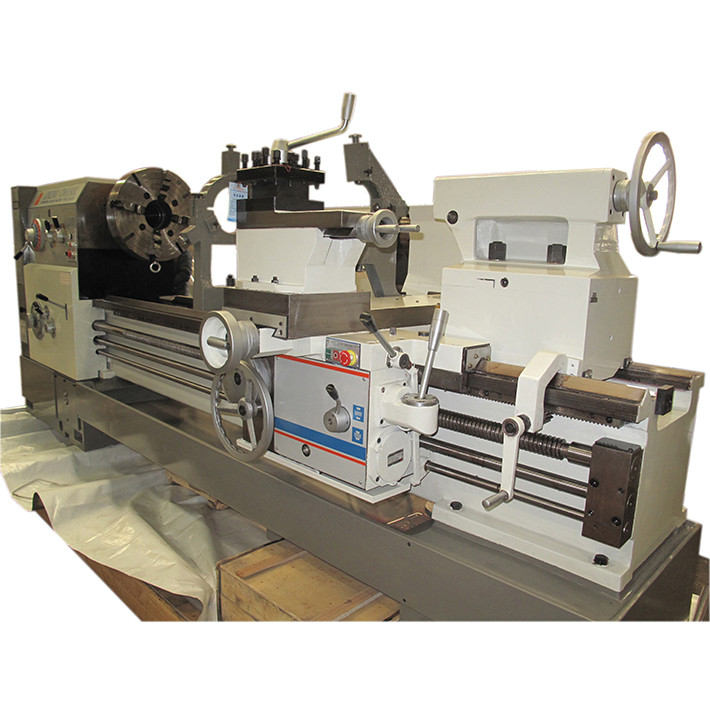

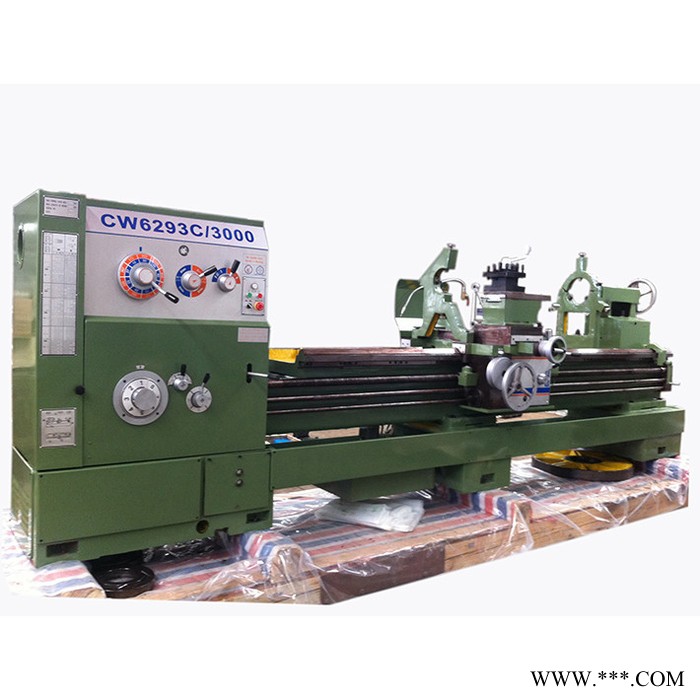

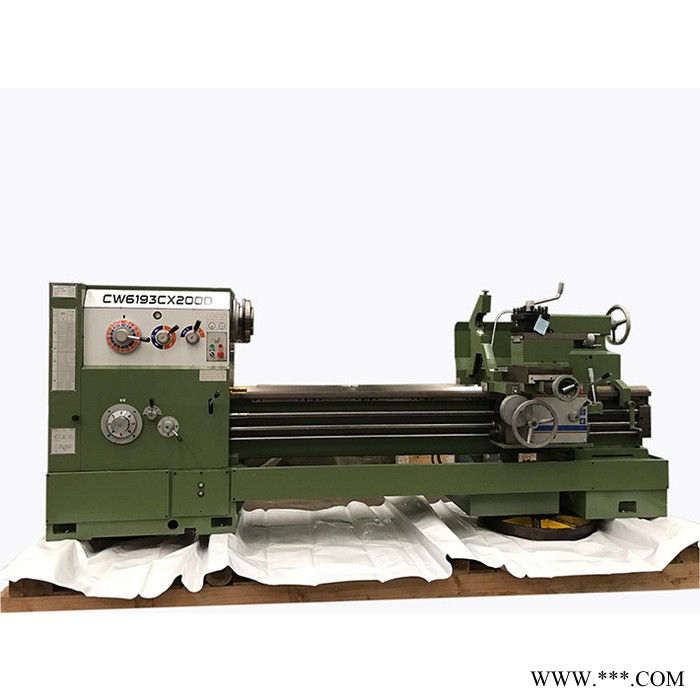

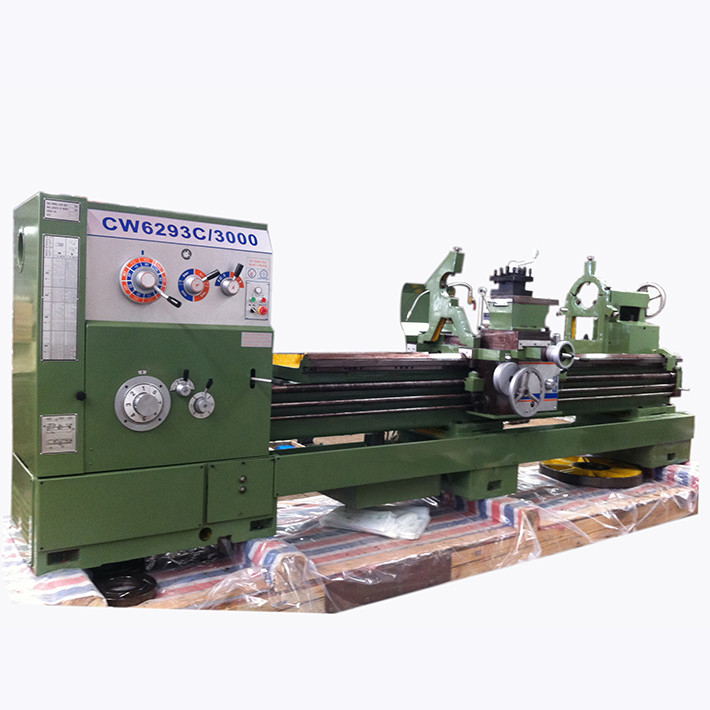

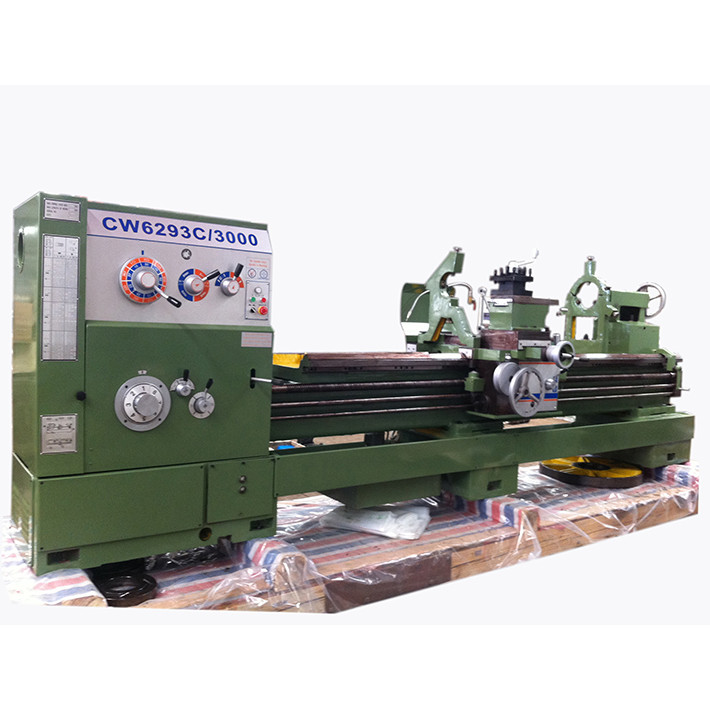

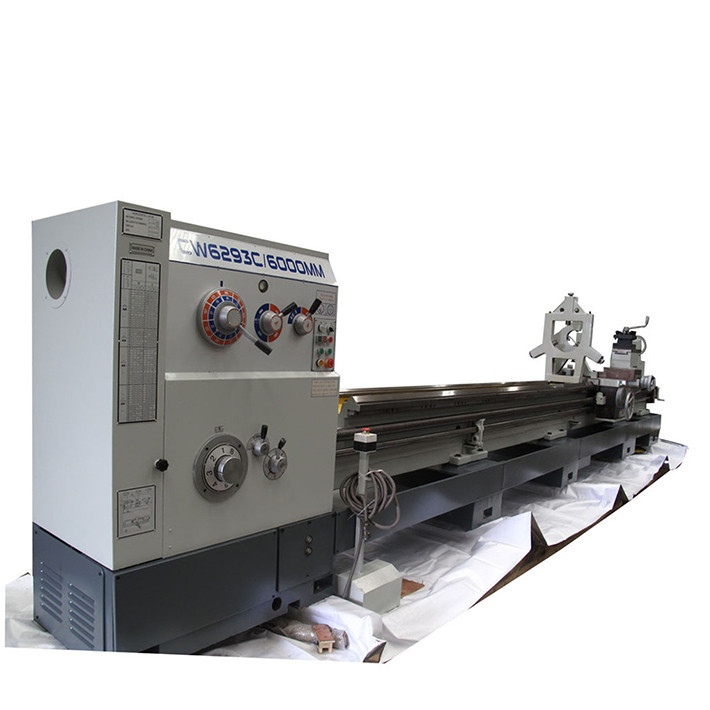

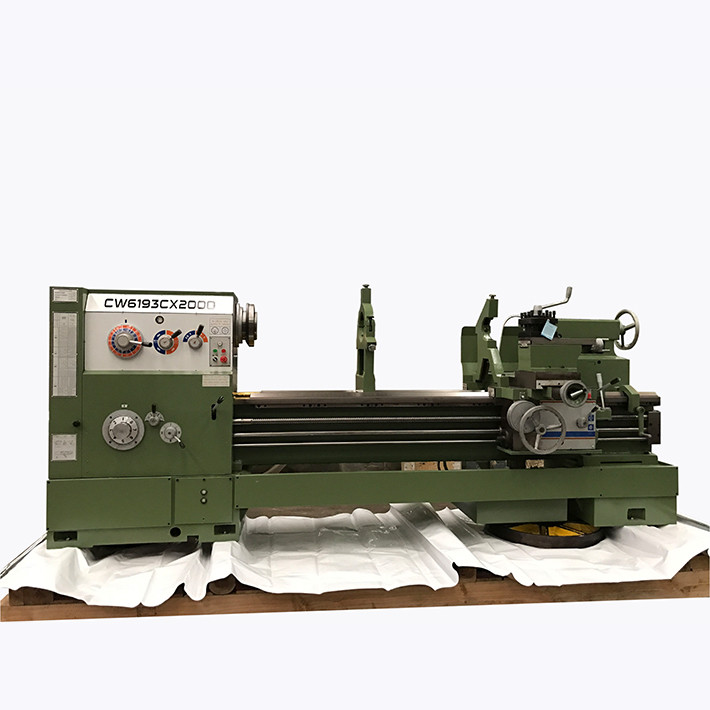

| MODEL | UNIT | CW61(2)93C | |
| Swing over bed | mm | 930 | |
| Swing in gap(only for gap lathe CW6293C) |
| 1100 | |
| Swing over cross slide | mm | 650 | |
| Distance between centers | mm | 1000,1500,2000,3000,4500,6000 | |
| Spindle nose |
| C11,D11 for optional | |
| Spindle bore | mm | ￠105,￠130 for optional | |
| Spindle speeds | rpm/steps | 10-800/18 | |
| Cross slide travel | mm | 480 | |
| Top rest travel | mm | 225 | |
| Rapid travel | mm/min | Longitudinal Axe Z: 3200 Cross Axe X: 1900 | |
| Quill diameter | mm | 100 | |
| Quill travel | mm | 260 | |
| Quill taper |
| MT6 | |
| Bed width | mm | 550 | |
| Metric threads | mm/kinds | 1-240/53 | |
| Inch threads | tpi/kinds | 30-2/31 | |
| Module threads | mm/kinds | 0.25-60/46 | |
| Diametrical pitch threads | tpi/kinds | 60-0.5/47 | |
| Main motor power | kw | 11 |
